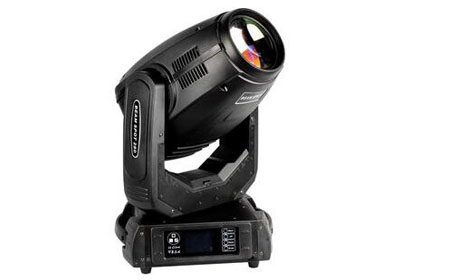

280W beam moving head pattern lights
Model: SC-280
Product parameters:
16/24 two channel selection mode, electronic rectifier
Bulb Model: OSRAM 280W Power: 280W
Display: LCD display, can be reversed 180 °

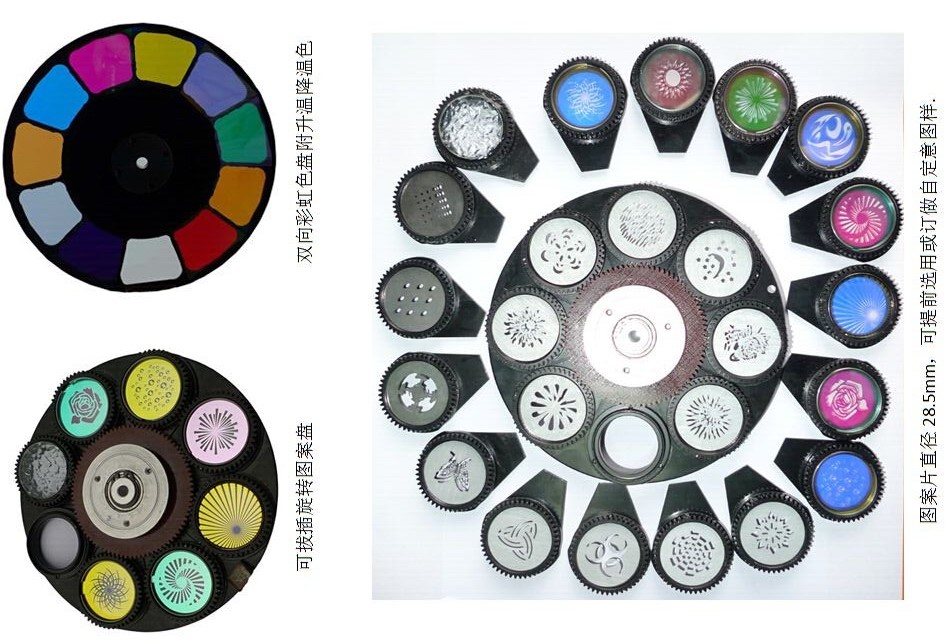

Color plate: a color plate, there are 13 color film,
Pattern plate: two pattern discs, fixed pattern plate 14 patterns + white light, rotating pattern disk: 9 rotating patterns + white light.
Rotate pattern sheet diameter: 15.4mm Effective inner diameter: 13mm
Effect wheel: two rotating prism, a circular sixteen prism, a straight line prism, atomization function.
0-100% mechanical dimming, support for mechanical strobe and adjustable speed strobe effect, support strobe macro function.
The use of photoelectric reset system, when accidental malfunction, can automatically retrieve the reset.
Horizontal 540 °, resolution 8Bit / 16Bit
Vertical 270 °, resolution 8Bit / 16Bit.
Overheating protection.
Power: 100-240V, 50 / 60Hz
Power: 400W
IP protection class: IP20
Size: 385 (length) × 365 (width) × 589 (high) mm
Net weight: 16KG
