Product Type: SC-7045

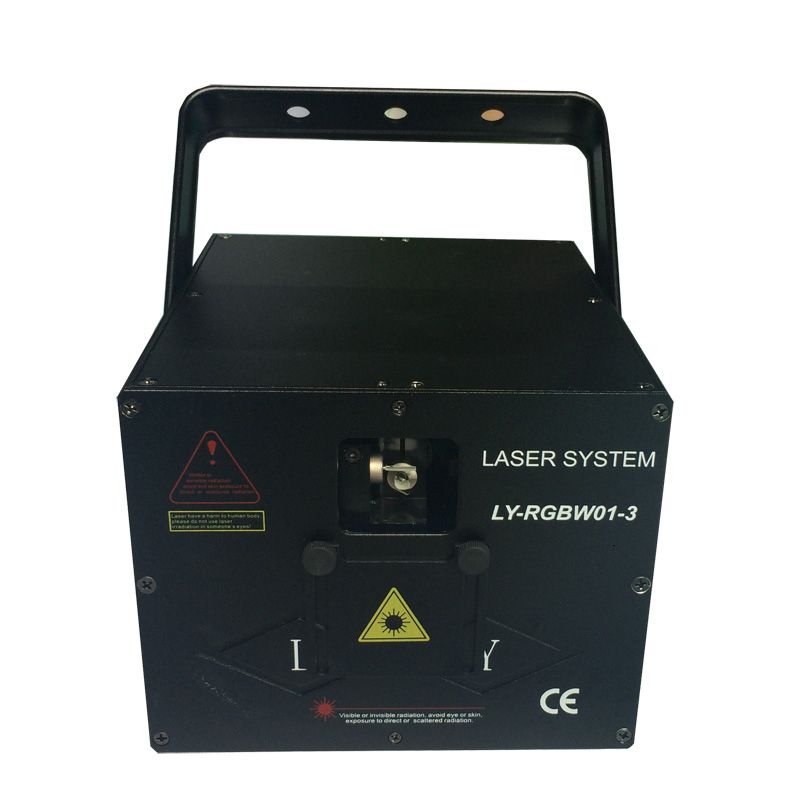

Product Name Laser Configuration LY-RGBW011W Full Color Laser R638nm / 600nm G532nm / 400nm W445 / 1WLY-RGBW022W
Full color laser R638NM / 800nm G532nm / 400nm B445 / 1WLY-RGBW033W
Full color laser R638nm / 1W G532nm B445nm / 1WLY-RGBW044W Full color laser R638nm / 1w G532nm B445 / 2wLY-RGBW055W
Full color laser R638nm-1w G532nm-2W B445-2WLY-RGBW066W Full color laser R638nm-2W G532nm-2W B445-2wLY-RGBW077W
Full color light R638nm-1.5W G532nm-2.5W B447-3WLY-RGBW088W full color laser R638nm-2W G532NM-3w B447-3W

Technical Parameters
Operating voltage: AC100-240V 50 / 60HZ Rated power: <3000W
Galvanometer DT40K high-speed scanning galvanometer (can be upgraded to 60K), optical angle ± 30 ° input signal ± 5V linear distortion <2%
Laser modulation: analog modulation
Beam diameter and distribution angle: 5mm: <2mrad
Control mode: self-propelled / master / slave / DMX512 (25CH) / compatible ILDA standard computer laser software (can be raised Pangolin FB3-Se, moncha.net and SD card control)
Control interface: control ILDA DB25 interface, the international common DMX512 interface, can be connected to the German fire Phoenix, the United States pangolin and other software
Demonstration effect: DMX built-in 128 patterns (can also be customized according to customer requirements), the animation effect of 42, according to the scene alone choose the beam effect or animation
DMX effects: dual pattern mode, can be broken pen, strobe, rotation, moving tumbling, drawing, changing color, etc.
Security intelligence: no signal to light, DMX signal and PC signal automatically switch
Note: the ambient temperature control at 10-40 °, dry and less dust environment can reduce the laser power attenuation, to extend the lamp life
To adapt to places: Di bars, bars, nightclubs, television stations, concerts, stadiums, etc.
Packing size: 39 * 39 * 41cm
